Solid Fuel Thermic Fluid Heaters
- Style Other
- Condition New
- Pressure Medium Pressure
- Output Other
- Fuel Consumption AS PER CAPACITY Meter/Liter (m/L)
- Fuel Type Coal- Fired
- Material IS 2062 GR B
- Supply Ability : 10 Unit Per Month
- Click to view more
Price And Quantity
- 500000.00 - 2000000.00 INR/Unit
- 1 Unit
- Medium Pressure
- As Per capacity. Millimeter (mm)
- HEAT TRANSFER
- AS PER CAPACITY Meter/Liter (m/L)
- IS 2062 GR B
- Coal- Fired
- 10 Unit Per Month
- 4-6 Week
- All India

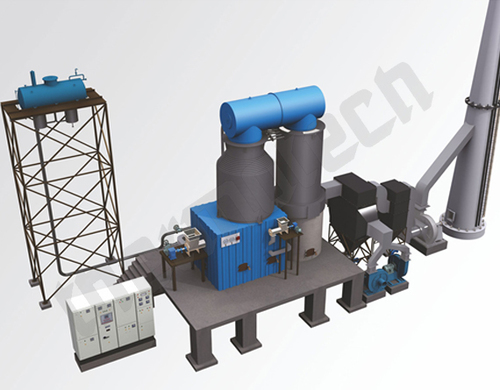

Solid Fuel Fired Thermic Fluid Heaters
Our clients can avail from us a superior range of Solid Fuel Fired Thermic Fluid Heaters which are available as per the client requirement. These are well known for their reliable operation and precise Thermic fluid temperature control. Our ranges of products are extensively used in various industrial applications. They are available in various specifications as per the client's requirement and these heaters can be offered at most reasonable prices.
Salient Features of This Model
Furnace is designed for multi fuel options, with major thrust on proper selection of combustion grate, furnace height, combustion volume, fuel feeding systems. To ensure efficient combustion & lesser heat loss.
Coils are designed with optimum flow consideration to gain maximum heat from flue gases. Coils are tested at 3 stages before final dispatch as a part of Thermotechs stringent quality control.
ID Fan, FD Fan & booster fan (in any) are selected as per fuels perfect air-fuel ratio requirement, which ensures optimum air quantity for combustion & thus saves power consumption.
Expansion Tank capacity is specifically selected after consulting total holdup of Thermic Oil. Deaeration Tank is specially designed considering flow & temperature requirement.
Thermotech offers complete solution of Thermic Fluid heating system along with Pipeline, Pollution control equipments, fuel handling, etc on Turnkey basis.
Auto Controls & Safety
- Thermic Fluid Temperature control
- Digital temperature indicator-cum-controller cut of ID/FD fan of preset temperature and restart of preset temperature and restart of preset differential temperature to maintain system temperature.
- Stack Temperature Control
- A blind temperature controller cut of ID/FD fan and sound alarm if stack temperature exceeds to preset temperature.
- Low/NO Flow of Thermic Fluid
- Differential pressure switch connected across intel and outlet headers signals low flow alarm in case of low fluid pressure of Thermic fluid in coils.
- Low Level of Thermic Fluid
- The visual level indicator and float actuated lever switch fitted in expansion tank signals alarm in case of low level thermic fluid in the system.
- Thermic Fluid Pump Motor Trip
- In case of thermic fluid pump motor trip, electrical interlocks, cut off ID/FD fan.
- Power Failure
- Diesel engine drive keeps thermic fluid moving in the system to prevent its degradation and overflow.
- Excess Furnace Bed Temperature
- Digital temperature indicator-cum-controller senses furnace bed temperature and cut off ID/FD fan above set value(for FBC unit).
- Multi-Fuel Option
- Low Power Consumption
- Energy Optimization
- Low Maintenance
"We are mainly dealing in Madhya Pradesh."
